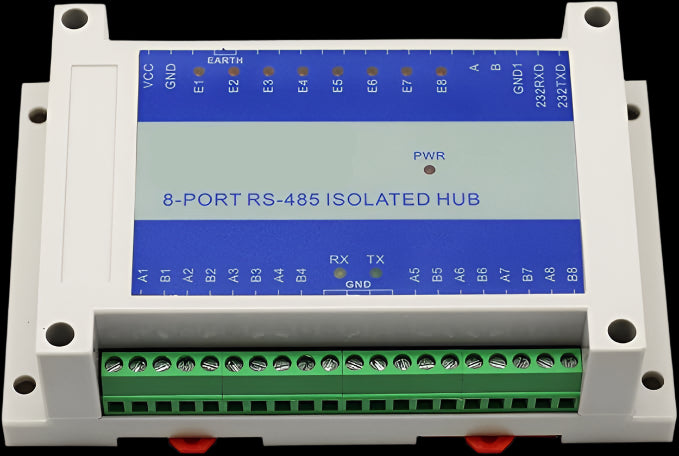

RS-485 Hub with Isolation 8 Port Hub RS232 to RS485

Interface Standards: Fully compatible with RS-232C and RS-485 standards as defined by EIA/TIA, providing versatile connectivity for industrial and commercial applications.

Voltage Input: Operates on a wide DC input range of 12-48V at 350mA, ensuring reliable performance in varied power environments.

Compact Design: Measuring 145mm × 90mm × 40mm, the hub is designed for easy installation and efficient use of space.

Working Mode: Supports asynchronous half-duplex communication, ideal for RS485 network implementations.

Signal Indicators: Features 11 signal indicators (PWR, TX, RX, E1-E8) for clear and intuitive system status monitoring.

Isolation: Offers robust isolation with a non-stop isolated voltage rating of 2,500VRMS and 500VDC, along with a DC/DC isolated module for enhanced safety and reliability.

Transmission Capabilities: Achieves high-speed data transmission rates of up to 115.2Kbps over distances as long as 1.2km, ensuring efficient and long-range communication.

Advanced Protection:

• RS-232 Ports: 15KV ESD protection for safe and stable operation.
• RS-485 Ports: 1,500W lightning and surge protection for robust durability in harsh conditions.
